R-22 is a "hydrochlorofluorocarbon" refrigerant with high latent heat of vaporisation used for domestic, commercial and industrial air conditioning.
Used at low temperatures (up to -40°C), R-22 is also suited for refrigeration and deep freezing. In energy saving applications, it allows the production of heat pumps with average temperature heat sources (55°C maximum).
Linked documents ( 0 )

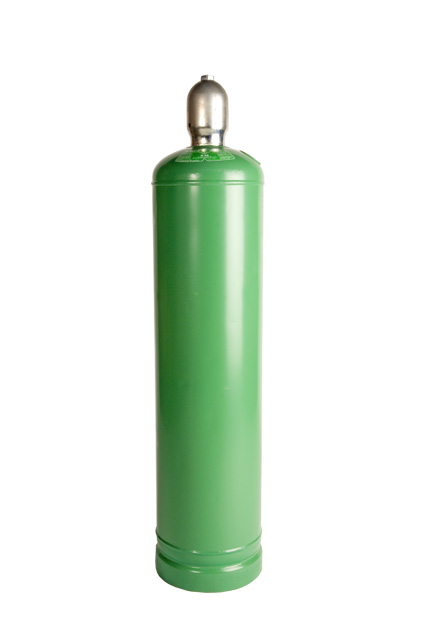

| Reference | Product | Packaging | Charge | |
|---|---|---|---|---|
| R-22 | 9.25 L cylinder | 9kg |
|
|
| 134 |
134 R-22 |
Friostar | 19kg |
|
| 120 |
120 R-22 |
27 L cylinder | 27kg |
|
| 124 |
124 R-22 |
52 L cylinder | 52kg |
|
| 4487 |
4487 R-22 |
448 L container | 450kg |
|
| 60060 |
60060 R-22 |
930 L container | 950kg |
|
FreonTM MO79 is a zeotropic HFC blend designed as a direct replacement for R-22 based blends (which previously replaced R-502), such as R402A, R403B and R408A. It tends to be used in lower temperature refrigeration systems. .
R-422D (FreonTM MO29) is a zeotropic HFC blend designed as a direct replacement R-22 in direct expansion (Dx) refrigeration and air conditioning systems. It can also be used in water chillers but care is sometimes needed with the expansion device.
R-427A is a zeotropic HFC blend which has been designed to replace R-22 (HCFC) by conversion of existing systems or for use in new systems. It may be used in direct expansion refrigeration systems and air conditioning.
Poly-alpha-olefin oil (PAO)
